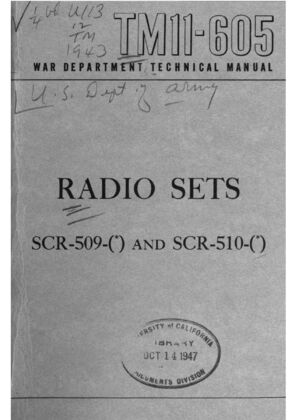

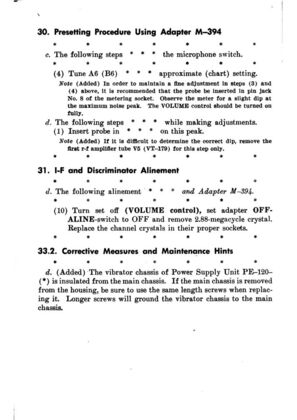

A vintage service manual is a scan of a scan: a grey photocopy of a 1970s synth’s schematic, a camera repair manual with exploded views, a car workshop manual with wiring diagrams across two pages, a WWII radio manual with the circuit on a fold-out. On a bench a 10 inch e-reader is the right tool for it, no glare under the lamp and no laptop in the way of the soldering iron. But open the PDF directly and the schematic shrinks to a grey thumbnail with its margins intact.
↑ Upload and configure in our Studio
This converter treats every page of the manual as an image and rebuilds it for the panel you own. It trims the margins so the diagram fills the screen, pushes the grey of the photocopy towards black on white so component values and thin traces survive e-ink, upscales a low-resolution scan to the panel’s own pixel count instead of letting the device blur it, and keeps a landscape page as one page shown sideways rather than splitting a schematic down the middle. The file it writes opens natively: EPUB or PDF for a Boox, EPUB for a Kindle Scribe, KEPUB for a Kobo.
Honest scope first: this is for manuals you hold as a PDF or as page images. It does not make part numbers searchable, it cannot zoom a schematic past the pixels the panel has, and a fold-out that was A3 on paper is small on anything under 10 inches. It does the part that makes a scanned page legible on e-ink, in the browser, free, with a live preview before anything converts.
- Files auto-delete after 24 hours
- No install, runs in any browser
- Free to use
- The genuine open-source KCC engine
How to put a service manual PDF on a Boox, Kindle Scribe or Kobo
Drop in the manual
A scanned PDF from archive.org, a manufacturer’s archive or a repair forum, or a folder of page images zipped up or packed as a CBZ, up to 1GB and 1000 pages per file and 20 files per batch. A whole shelf of manuals can go in as one batch.
Crop, contrast, upscale and landscape pages are already set
This page presets margin cropping with page-number trimming, an auto-level pass that pushes the grey of a photocopy towards black and white, upscaling so a 150 dpi scan is rebuilt at the panel’s own pixel count, and single landscape pages, so a schematic that is wider than it is tall is kept whole and shown sideways rather than split into two pages. Manga mode is off, so pages read left to right.
Pick your device
The Kindle Scribe profile is preselected as a starting point. For a Boox Note Air, Tab or Go, which is what most bench readers are, choose Custom conversion and type the panel’s width and height in pixels; the page is built for exactly those pixels. Every current Kindle, Kobo and reMarkable has its own profile too, so pick your model from the list.
Check the preview, convert, download
The preview renders real pages at the device size, which is the moment to confirm the smallest component values on the schematic are legible. Convert, then download the file or pick it up on the reader from your Reader Shelf over Wi-Fi. Files auto-delete after 24 hours.
Which e-readers work for service manuals, by brand
| Device | Profile in the picker | Screen | Recommended output |
|---|---|---|---|
| Boox Note Air, Tab, Go and other Android readers | Custom conversion | Type the panel’s pixel width and height | EPUB or PDF, downloaded in the Boox browser from the Reader Shelf |
| Kindle Scribe | Kindle Scribe 1/2 | 10.2 inch, 1860 x 2480 | EPUB, delivered by Send to Kindle, the Reader Shelf or USB |
| Kobo Elipsa and Sage | Kobo Elipsa, Kobo Sage | 10.3 and 8 inch | KEPUB, copied over USB or downloaded from the Reader Shelf in the Kobo browser |
| reMarkable | A profile per model, reMarkable 1, 2 and Paper Pro | 10.3 to 11.8 inch depending on the model | PDF, loaded through the reMarkable app; you can mark up the schematic |
| Any 6 or 7 inch reader | Your model’s profile | Readable for the text pages once the margins are cropped, small for a full-page schematic | The brand’s native format, as above |
What this cannot do
No text search for part numbers, no zoom beyond the panel’s pixels, no annotation on the converted Kindle or Kobo file, and no magic on a fold-out: an A3 wiring diagram on a 6 inch panel is small whatever you do to it. Keep the PDF for searching on a laptop; use the converted copy at the bench.
Margins are where the legibility goes
A photocopied manual has the original print margins plus the border the copier added plus the border the scanner added. Trimming them before the page is sized to the screen is most of why a converted manual reads so much larger than the raw PDF, and the preset here trims the page numbers along with the border.
Right to left is off here
Every manga page on this site defaults to manga mode, which stamps right-to-left reading into the output. Manuals read left to right, so this page turns manga mode off before your file goes in; you do not need to find the switch.
Frequently asked questions
Can I read a schematic on a Boox or a Kindle Scribe?
Yes, and a 10 inch panel is the size that makes it work. A PDF opened directly shrinks the page to fit with its margins intact; converted with your panel’s pixel size, each page is cropped to the printed block and rebuilt at the panel’s own resolution, so a full-page schematic uses every pixel the device has. Landscape pages are kept whole and shown sideways: turn the reader and the schematic fills the screen the way the drawing was laid out.
Why keep landscape pages whole instead of splitting them?
Because a schematic is one drawing. The comic default on this site splits a wide page into two, which is right for a two-page comic spread and wrong for a circuit diagram, where a signal path would be cut in half. The preset here keeps a wide page as one page, rotated, so you read it with the reader turned sideways. If a manual has genuine two-page spreads of text you want split, switch the page layout option back to split before converting.
Will a grey photocopy scan be readable on e-ink?
Better than the raw file, and the preview lets you judge it before converting. The auto-level pass pushes the grey background towards white and the lines towards black, which is what rescues a third-generation photocopy on a greyscale panel, and upscaling rebuilds a low-resolution scan at the panel’s pixel count so the device is not blurring it further. Detail that is not in the scan cannot be invented; a smudged resistor value stays smudged.
Can I zoom into the schematic on the device?
Only as far as the device’s own reader zooms a page image, which on a Kindle or Kobo is a pinch on the page and on a Boox is whatever its reader app offers. The converted page carries exactly the panel’s pixels, so zooming shows those pixels larger, not more detail. For a dense schematic on a small panel the honest answer is a bigger panel, or splitting the drawing yourself into quadrants before converting.
Which output format should I choose?
EPUB or PDF for a Boox, whichever its reader app prefers; both are downloaded from the Reader Shelf in the Boox browser. EPUB for a Kindle Scribe, which is what Send to Kindle accepts. KEPUB for a Kobo. PDF for a reMarkable, which you can then write on. CBZ gives you the cropped, contrast-fixed page images on their own if you read in a different app.
Page extraction, cropping, contrast, upscaling and the landscape-page rule run on Kindle Comic Converter (KCC), the open-source engine built for putting image-based pages on e-readers. That the pages hold schematics rather than panels changes nothing about the work, which is why the fit is honest. Hosted here with a live preview, no install.
Free, margins cropped, schematics kept whole, built for your panel
